PET thermoformed blister sheet rolls


- حدود الإنتاج:
- نطاق السُمك: 0.18mm-1.8mm
- نطاق العرض: 350mm-1300mm
- مجال اللون: شفاف/شفاف/أسود/أبيض/تخصيص اللون
- MOQ: 5 طن (يتم قبول العينة المجانية)
- التطبيقات: صينية التشكيل الحراري / صينية الإلكترونيات / صينية الأطعمة الطازجة / التغليف بالبثور
هل تبحث عن هذا؟ Thermoforming PET Sheet Roll. pet-sheet.com is مصنع يركز على التصنيع والتصدير بشكل صارم Thermoforming PET Sheet Roll للتغليف بالحرارة أو التعبئة بالبثور. بما يخص "PET thermoformed blister sheet rolls", إذا تركت لنا متطلباتك مثل سمك البلاستيك PET والعرض والتطبيق، فإن مبيعاتنا المهنية سوف تقدم لك أفضل سعر تنافسي.
PROPERTIES | METHOD | UNIT | SPEC |
---|---|---|---|
Coefficient of Kinetic Friction | GB/T 10006 | --- | ≦0.350 |
Specific gravity | ASTM D-792 | g/cm3 | 1.345 |
Meliting Temperature | ASTM D-3418 | ℃ | 250±5 |
Glass Transition Temperature | ASTM D-3418 | ℃ | 65~75 |
Haze | ASTM D-1003 | % | ≦3.0 |
Tensile Elongation@Break | ASTM D-638 | % | ≧450 |
Tensile Strength@Yield | ASTM D-638 | Kg/cm2 | ≧550 |

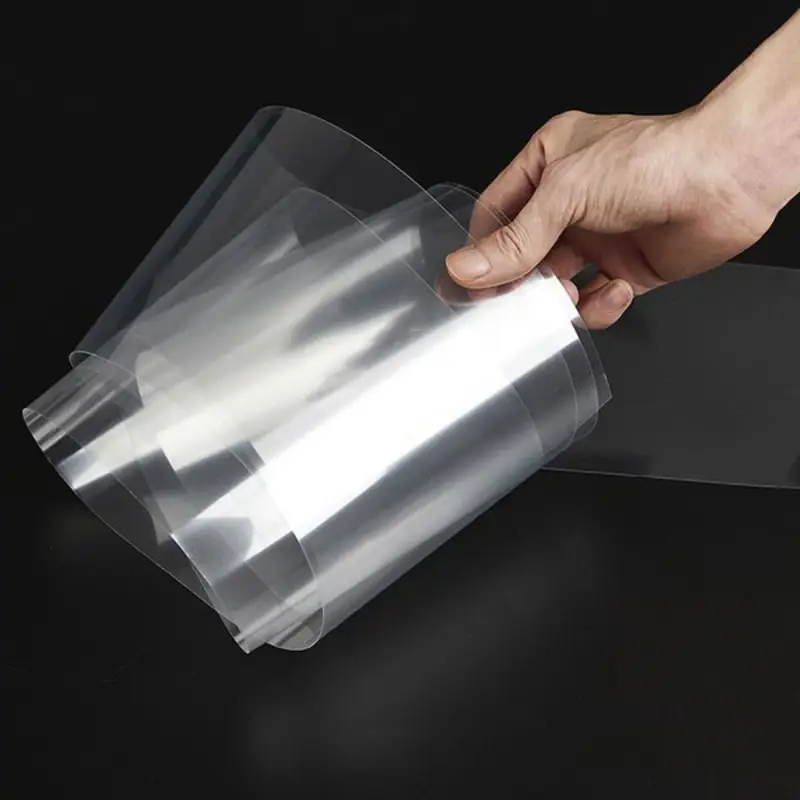

Product Introduction of PET thermoformed blister sheet rolls
PET thermoformed blister sheet rolls are specialized plastic materials used primarily in thermoforming applications, such as for creating blister packaging for consumer products, electronics, pharmaceuticals, and food. Made from high-quality PET (Polyethylene Terephthalate) plastic, these sheets are durable, transparent, and lightweight, providing excellent protection and visibility for packaged goods.

PET thermoformed blister sheet rolls
Size: Thickness: 0.18-1.8mm
Width: 300-1400mm
Color: Transparent/Others or Customized
Application: Thermoforming vacuum forming blister packaging boxes or trays for electronics, food, medical, and other industries
Special performance customization: Anti-fog, ESD (Anti-static, Conductive, Static dissipative), Corona, Printing, Coating, High impact, Waterproof, Oil-proof, Anti-UV, etc.
Delivery time: 7~15 days since receipt of PO and down payment.
Payment Accepted: D/A, D/P, T/T, L/C, Westunion etc.
MOQ: 5 tons, free samples supply.
Specifications of PET thermoformed blister sheet rolls
Product Category | APET, GAG, RPET, PET/PE, etc. |
Shape | Roll/Sheet |
Thickness | 0.18~1.8mm |
Width | 300~1400mm |
Quality | Virgin/Recycled |
RPET content percentage | 30%-100% |
PET Roll Diameter | ≤38 inch |
Color | Clear, White, Blue, Brown, Pink, Green, Yellow or Customized |
Performance | Anti-fog, ESD (Anti-static, Conductive, Static dissipative), Corona, Printing, Coating, High impact, Waterproof, Oil-proof, Anti-UV, etc. |
Packing | PE film inside + kraft outside+pallet (paper tube diameter: 76mm, thickness: 10mm) |
Processing technology | Thermoforming Vacuum Blister Forming, Die Cutting |
Company Profile | 5 PET co-extruded production line & 2 PET coating production line. Production Capacity: 2,000MT/month. First-class R&D team, 30+ patents, CE, ISO 900, ROSH, GRS certificate. 40+ agents China, 100% return or original compensation Guarantee. |
Properties | UNIT | METHOD | Virgin PET | Pre-consumer/Post Recycled PET | |||
---|---|---|---|---|---|---|---|
Data | (ASTM) | 100% PET | RPET 25% | RPET 30% | |||
Thickness Tolerance | %/mm | / | ±5% | ±5% | ±5% | ||
Thickness Range | mm | / | 0.18 – 1.8 | 0.18 – 1.8 | 0.12 – 1.8 | ||
Width Tolerance | mm | / | ±2mm | ±2mm | ±2mm | ||
Width Range | mm | / | 300 – 1400 | 300 – 1400 | 300 – 1400 | ||
Weight Tolerance | % | / | ±3% | ±3% | ±3% |
Features and advantages of PET thermoformed blister sheet rolls
1. High Clarity and Transparency
PET thermoformed blister sheet rolls offer superior optical clarity, ensuring that the packaged product is clearly visible to consumers.
2. Strong Durability
PET sheets provide robust protection against impact, moisture, and tampering, which is ideal for sensitive items.
3. Lightweight and Cost-Effective
Despite being lightweight, PET plastic sheets are strong enough to hold products securely, helping reduce shipping costs and environmental impact.
4. FDA-Approved
PET sheets used for food packaging often comply with FDA regulations, ensuring they are safe for direct food contact.
5. Customizable
These sheets can be customized in terms of thickness, color, size, and surface treatment, making them versatile for different industries.
6. Thermoforming Compatibility
PET thermoformed blister sheets are highly compatible with thermoforming processes, allowing manufacturers to shape them into precise packaging molds.

Advantages of PET plastic sheet rolls
- High transparency and gloss 90%
- Excellent impact resistance
- Chemical resistance
- Excellent flavour barrier properties
- Easy thermoforming characteries
- Lightweight
- Highly recyclable
- FDA Approval
- Excellent printability
- Good temperature resistance
PET thermoformed blister sheet rolls type we offer
PET sheet type | Width (mm) | Thickness (mm) | Color | Resistance value (Ω) |
Silicon-coated PET | 300-1400 | 0.18-1.8 | Transparent/Others | / |
RPET sheet | Transparent/Others | / | ||
GAG sheet | Transparent/Others | / | ||
Anti-fog PET | Transparent/Others | / | ||
High impact PET | Transparent/Others | / | ||
PET lamination PE | Transparent/Others | / | ||
PET sheet for electronic | ||||
Conductive PET | 300-1400 | 0.18-1.8 | Transparent/Others | 104-106 |
Semi-conductive PET | Transparent/Others | 106-109 | ||
Anti-stactic PET | Transparent/Others | 109-1011 | ||
Coated PET | Transparent/Others | 103-106 |
Application of thermoformed blister sheet rolls
- Consumer Goods: Used for packaging toys, cosmetics, and hardware items.
- Pharmaceuticals: Ideal for pill and tablet blister packaging.
- Food and Beverages: Used for packaging items like meats, cheeses, and snacks, where product visibility is important.
- Electronics: Protects electronic devices, such as small parts and accessories, from environmental factors.






Choose us Desu Plastic (Shanghai) Co., Ltd
DESU (pet-sheet.com) is an excellent thermoformed plastic sheet rolls manufacturer in China, mainly developing and producing PET, HIPS, PP and other plastic sheets. The company has 12 PET/PP/PS co-extrusion production lines imported from Europe, 2 PET coating production lines, a completely dust-free production workshop and is equipped with the most advanced raw material air conveying/drying system and PLC intelligent control system. Our annual output exceeds 40,000 tons, and customers from more than 30 countries around the world have chosen us.
